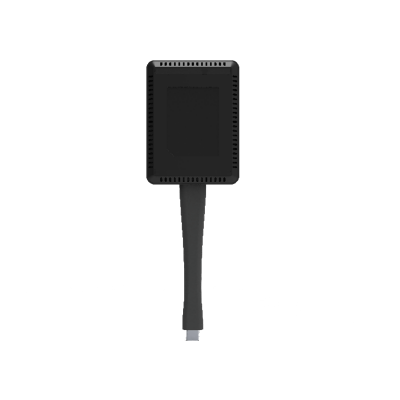

Wireless Screen Sharing Dongle for Dahua ST470-P DeepHub Interactive Whiteboard

Hardware Parameters

Input Resolution

480p, 576p, 720p, 1080p, 4K

PC timing: 640 × 480, 800 × 600, 1024 × 768, 1280 × 720, 1920 × 1080, 3840 × 2160

Output Resolution

720 × 480, 720 × 576, 1280 × 720, 1920 × 1080 (1080p), 3840 × 2160

Interface

Full featured Type-C

Input voltage

5 VDC (Type-C power supply)

Power consumption

2.5 W (Average)

Current Consumption

0.9 A (Max.)

System config

Operating system

Windows® 7, Windows 8.1, Windows 10 or Windows 11, macOS™, Chrome OS, Linux OS, Android OS. Any OS supports full featured Type-C

Encryption

CCMP

Authentication protocol

WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)

Wireless transmission protocol

IEEE 802.11 a/g/n

Wireless data rate

54 Mbps

Frame Rate

Up to 60 fps depending on environment (FHD)

Touch control back

Support 10 points

Structure

Net weight

80 g (0.18 lb)

Dimensions

176 mm × 58 mm × 17 mm (6.93″ ×  2.28″ × 0.67″)

LED

Blue, Green, Red

Environment Requirements

Operating temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating humidity

0%–80% (RH) (non-condensing)

Transmission distance

The distance between wireless projectors and the host is up to 15 m (49.21 ft)

Frequency band

2.4 GHz and 5 GHz (recommended)
