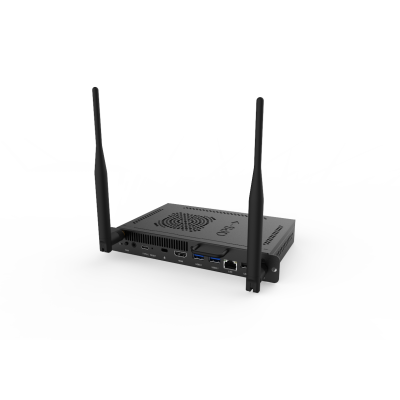

PC Module for Dahua ST470-P DeepHub Interactive Whiteboard

Function

Processor

Intel® Tiger lake-H i5-11320H, 3.2 GHz

Chip

SOC

BIOS

AMI UEFI BIOS

Integrated Graphics Card

Intel® Iris® Xe Graphics

Sound Card

Realtek ALC897

Memory

16 GB

Disk

256 GB

WIFI

Wi-Fi 6 (802.11ax)

BT

Bluetooth 5.2

Wireless

1 × M.2 2230 PCIE/USB2.0, Wi-Fi/BT Module

Button

Front, 1 × power button, 1 × resetting button (recessed socket)

Operating System

Windows 11 Pro(optional)

Number of Cores

4

Number of Threads

8

Level 3 Cache

8 MB

Device Ports

Power

1 × DC IN

Network Port

1 × RJ-45 (10/100/1000 Mbps)

USB

2 × USB 3.1 Type-A, 1 × USB 2.0 Type-A

Type-C Port

1 × USB 3.1 Type-C

HDMI

1×HDMI 1.4 out, Max.4K/30 Hz

Audio Port

1 × Line-out and MIC-In, 2-in-1 Connector

Extension Interface

1 × 80 pin JAE port

Power

Operating Voltage

12–19 VDC

Standby Power Consumption

0.8 W

Max. Power Consumption

57.7 W

Environment

Operating Temperature

–5 °C to +45 °C (+23 °F to +113 °F)

Operating Humidity

10%–95%, non-condensing

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

10%–95%, non-condensing

Structure

Casing Material

SGCC

Product Dimensions

119 mm × 180 mm × 30 mm (4.69″ × 7.09″ × 1.18″)

Packaging Dimensions

254 mm × 196 mm × 77 mm (10.00″ × 7.72″ × 3.03″)

Net Weight

0.75 kg (1.65 lb)

Gross Weight

0.95 kg (2.09 lb)

Casing Color

Black

Accessory

2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user’s manual

Certifications

Certifications

CE
