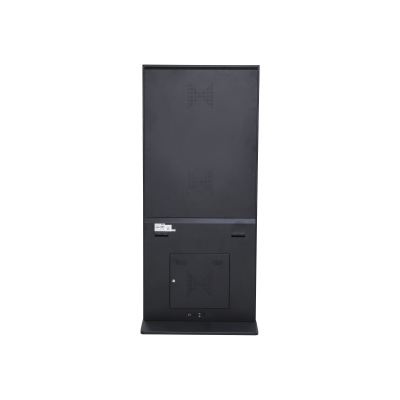

Dahua Vertical LCD Digital Signage 75″

LCD Panel

Panel Dimensions

75 inch

Backlight

DLED

LCD Technology

IPS/VA

Aspect Ratio

9: 16

Brightness

320 cd/m² (typ.)

Contrast

IPS 1200:1(typ.) / VA 4000:1(typ.)

Display Colors

10 bit (8 bit + FRC), 1.07B colors

Resolution

2160 (H) × 3840 (V)

Viewing Angle

178° (H); 178° (V)

Response Time

8 ms (typ.)

Surface Treatment

Haze 1%

Built-in System

Operating System

Android 8.1

CPU

4 cores A17, 1.6 GHZ

RAM

2 GB

ROM

16 GB

Video Decoding

2-ch H.264 1080p@25 fps; 4-ch H.265 1080p@25 fps;

4-ch H.265 1080p@30 fps; 2-ch H.264 1080p@25 fps;

2-ch H.265 1080p@30 fps; 2-ch H.264 4K@25 fps;2-ch

H.265 4K@30 fps; 1-ch H.265 4K@60 fps; The decoding

capacity statistics are based on tests with a single video

file.

Function

Audio Compression

MPEG-3, WMA, WAV

Video Compression

MPEG-4, H.264/AVC, H.265/HEVC

Video Format

mp4, avi, mov, asf, mkv, wmv

Device Ports

Network Port

1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet

port

Wi-Fi

Optional (External Wi-Fi module)

Bluetooth

NO

Data Transmission Ports

1 × TF card slot, up to 128 GB (the back cover needs to

be open)

2 × USB 2.0 ports (type A)

Video Input

1 × HDMI 1.4 (1080p @60Hz) (the back cover needs to

be open)

Video Output

NO

Audio Port

1 × 3.5 mm jack Mic (the back cover needs to be open)

IR Receiver

Yes

Speaker

Built-in Speaker

2 × 5 W

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

≤ 170 W

Standby Power

Consumpton

≤ 0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operatng Humidity

10%–85% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Product Material

Metal casing

Casing Color (Frame/Rear)

Black

Product Dimensions

2000 mm × 882 mm × 471.5 mm (78.74″ × 34.72″ ×

18.56″)

Packaging Dimensions

2125 mm × 200 mm ×1050 mm (83.66″ × 7.87″ ×

41.34”)

Net Weight

65 kg (143.30 lb)

Gross Weight

78 kg (171.96 lb)

Installation

Vertical mount

Display Mode

Portrait

Accessory

Base, user’s manual, power cord, legal and regulatory

information, remote control

Certification

Certifications

CE; ERP
