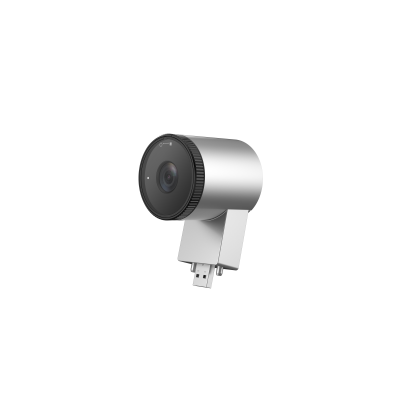

4K Webcam for Dahua ST470-P DeepHub Interactive Whiteboard

Video

Sensor

1/1.8″ CMOS

Resolution

48 MP

Pixel

2 um × 2 um

Max. Resolution

3840 (H) × 2160 (V)

Min. Illumination

0.1 lux

S/N Ratio

>50 dB

Data Format

MJPG, YUY2, H.264, H.265, NV12

Lens Type

Fixed-focal

Video Frame Rate

MJPG: 3840 × 2160@30; 2880 × 1620@30; 1920 × 1080@30; 1920 × 1680@30; 1280 × 720@30; 960 × 540@30;640 × 360@30; 480 × 270@30; 320 × 180@30

H.264: 3840 × 2160@30; 2880 × 1620@30; 1920 × 1080@30; 1920 × 1680@30; 1280 × 720@30; 960 × 540@30;640 × 360@30; 480 × 270@30; 320 × 180@30

H.265: 3840 × 2160@30; 2880 × 1620@30; 1920 × 1080@30; 1920 × 1680@30; 1280 × 720@30; 960 × 540@30;640 × 360@30; 480 × 270@30; 320 × 180@30

YUY2: 640 × 480@30; 640 × 360@30; 480 × 270@30; 320 × 180@30

NV12: 960 × 540@30; 640 × 360@30; 480 × 270@30; 320 × 180@30

Lens

Focal Length

4 mm

Max. Aperture

F1.6

Field of View

H: 87°; V: 49°; D: 99°

Function

White balance

Yes

Exposure Mode

Auto

Port

USB

1 × USB 2.0, Type A

Power

Operating Voltage

5 V

Operating Current

Max. 1 A

Power Consumption

Max. 5 W

Environment

Operating Temperature

–10 °C to +50 °C (+14 °F to +122 °F)

Operating Humidity

20%–80% (RH)

Storage Temperature

–10 °C to +60 °C (+14 °F to +140 °F)

Storage Humidity

20%–90% (RH)

Structure

Product Dimensions

51.7mm × 68.0mm × 96.1mm (2.04″ × 2.68″ × 3.78″) (L × W × H)

Packaging Dimensions

138 mm × 84mm × 95 mm (5.43″ × 3.31″ × 3.74″) (L × W × H)

Net Weight

0.12 kg (0.26 lb)

Gross Weight

0.15 kg (0.33 lb)

Accessory

User’s manual x 1

Certification

Certifications

CB, FCC, IC
