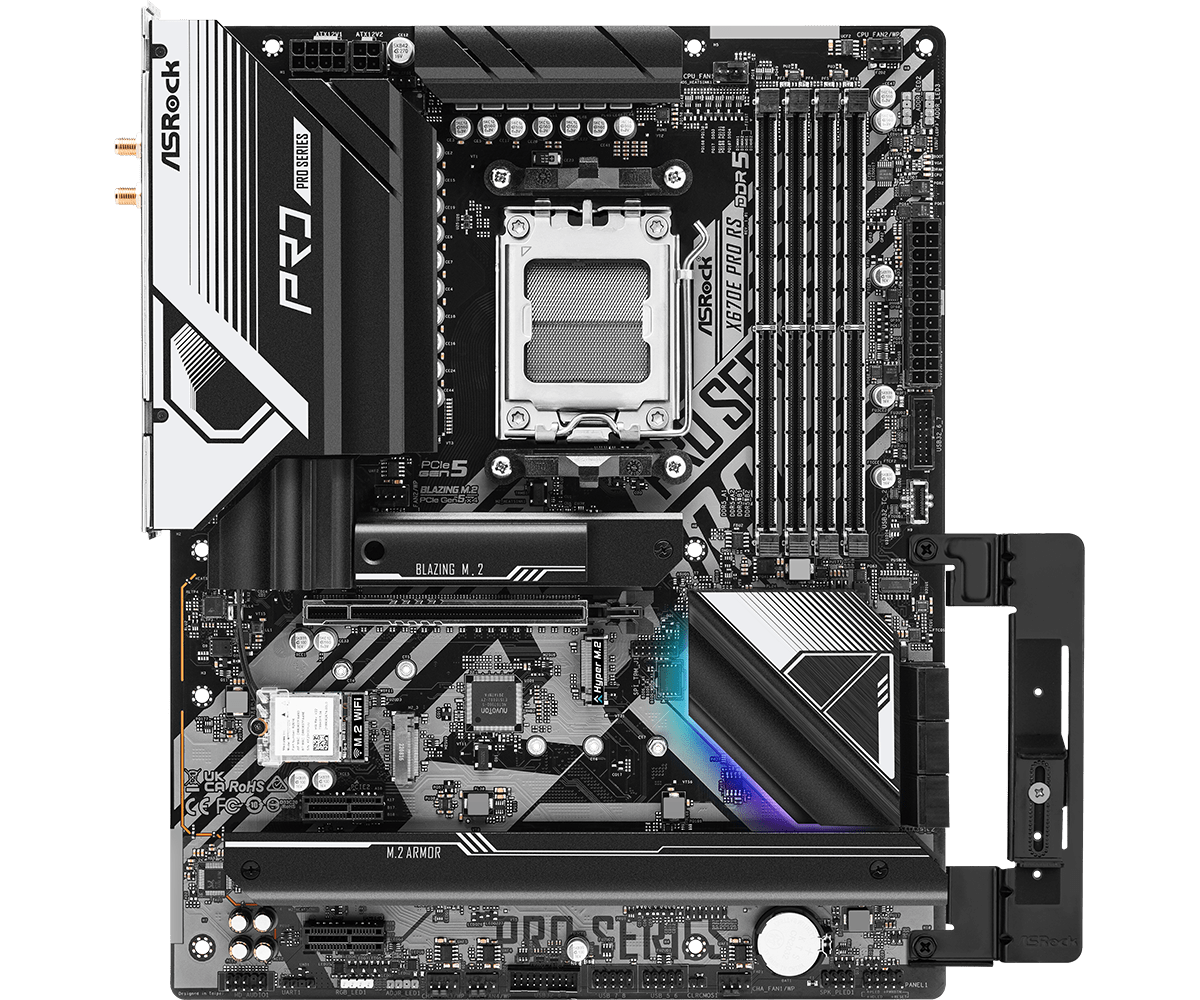

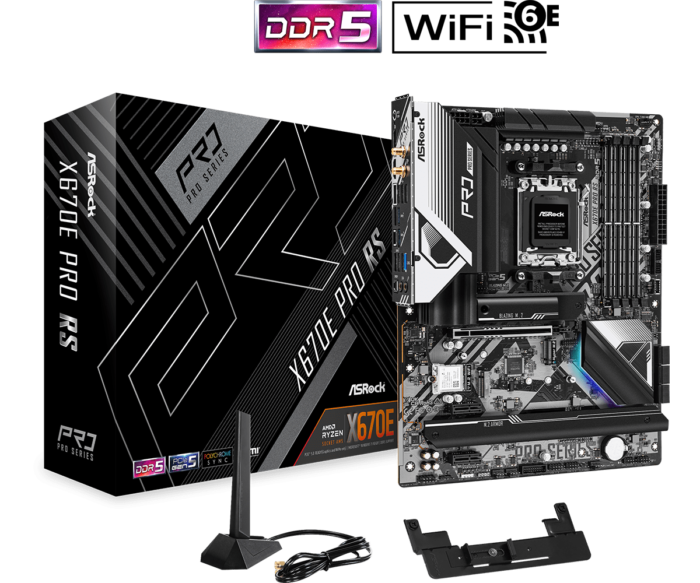

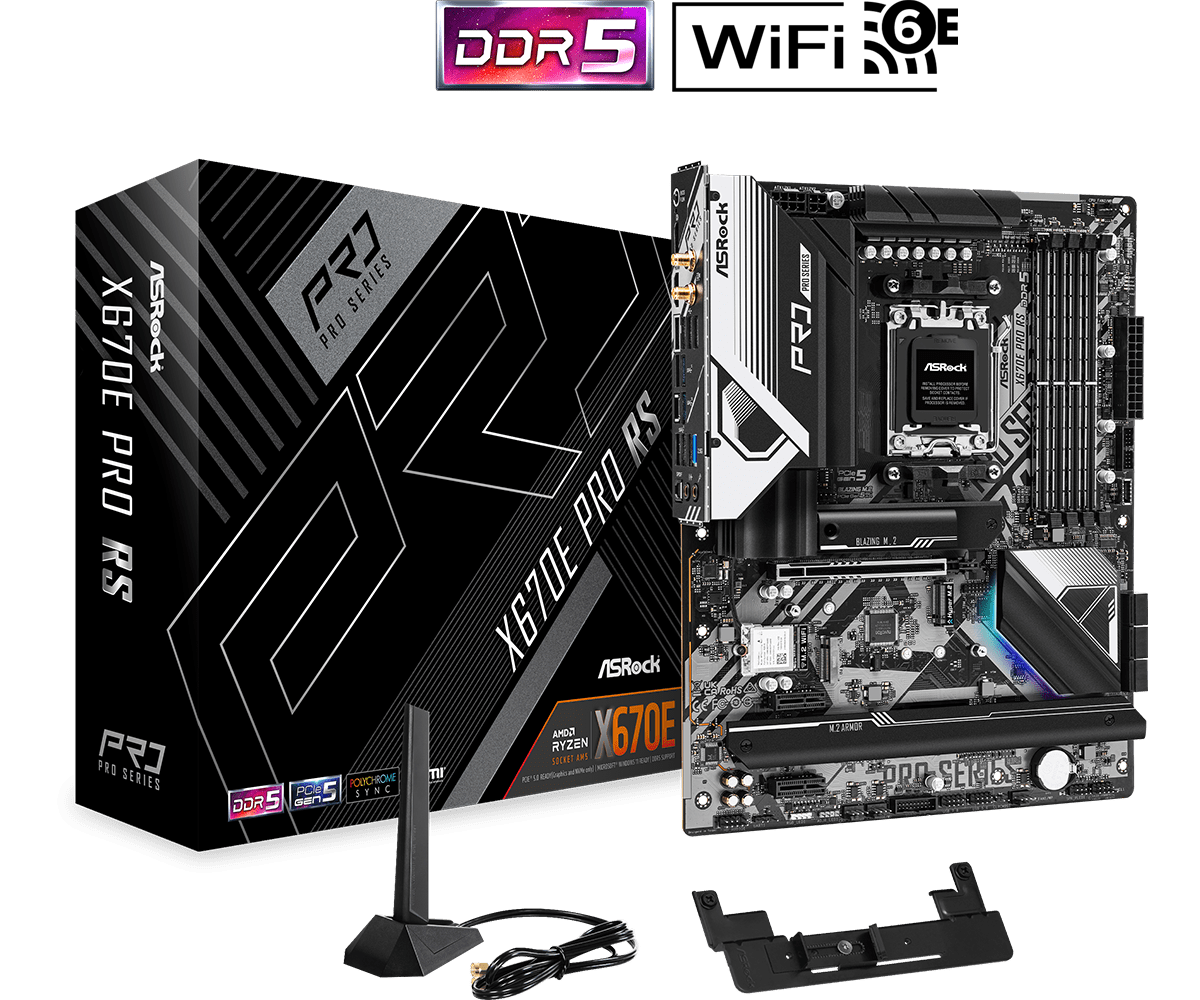

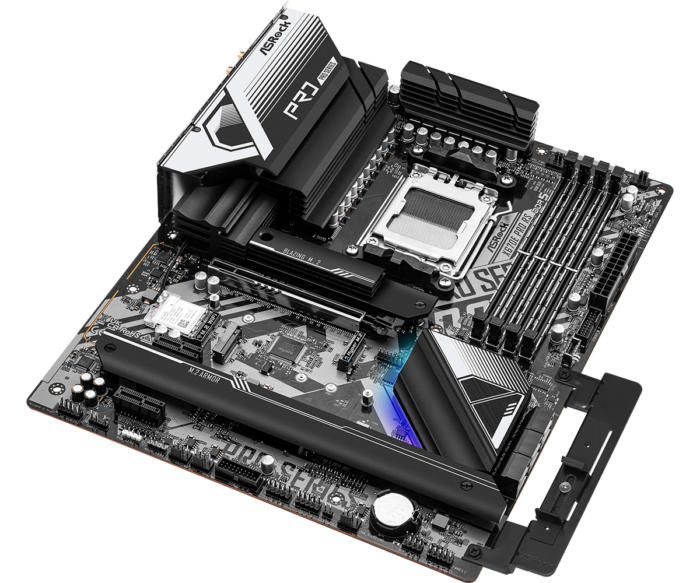

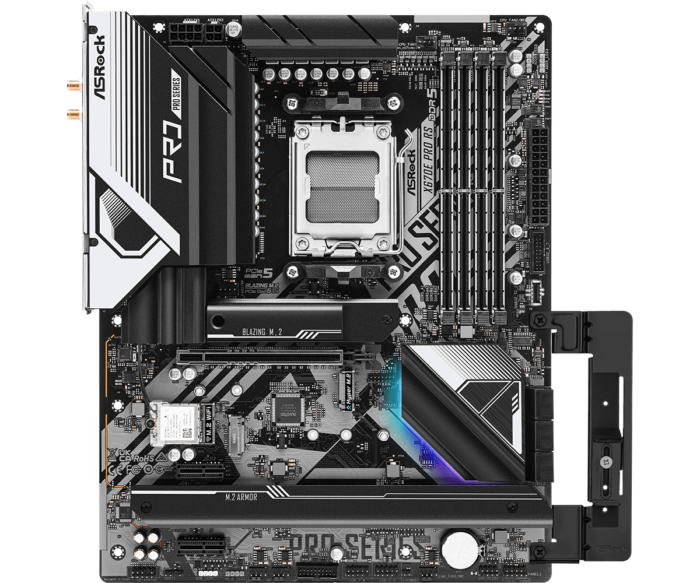

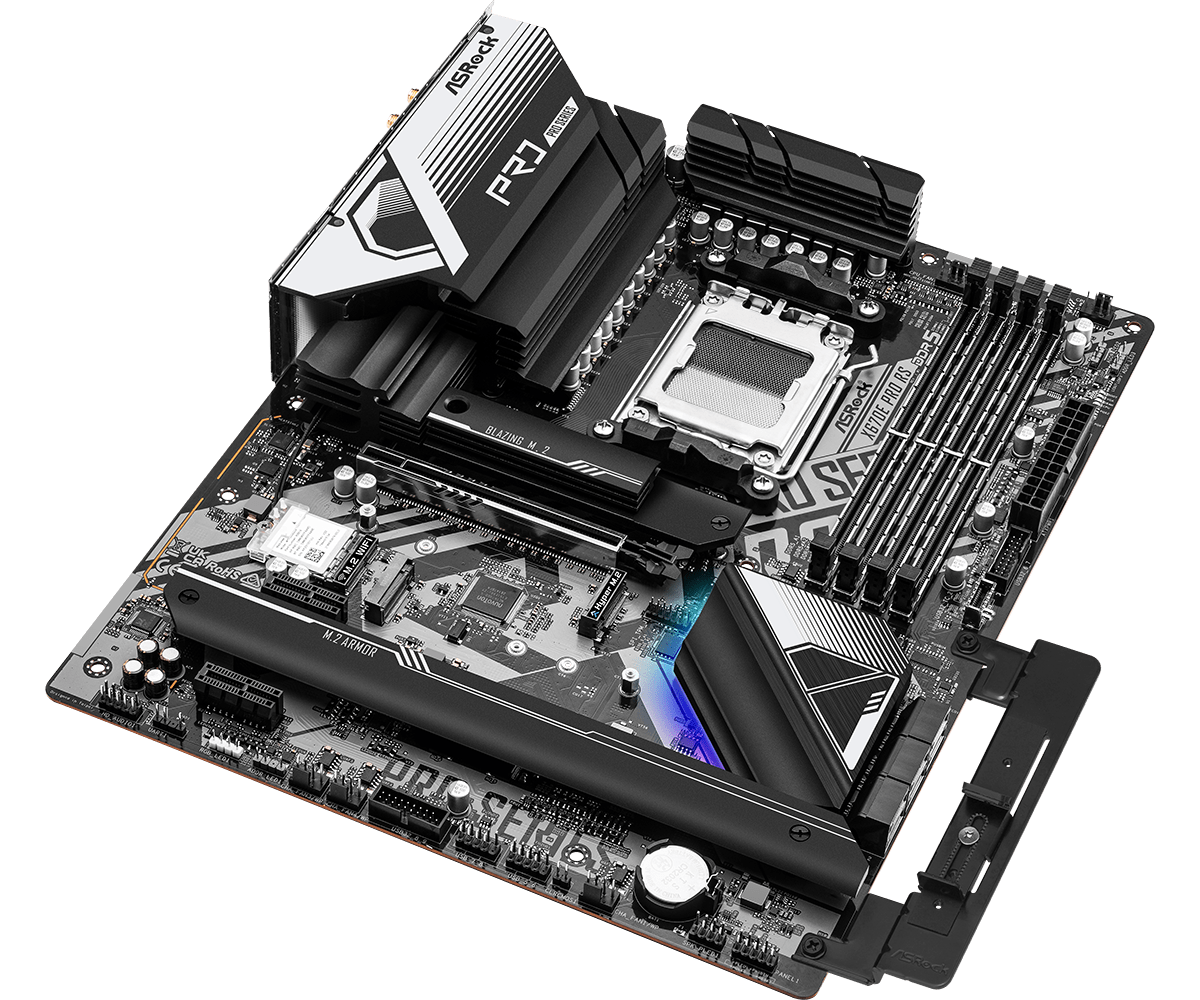

ASRock X670E Pro RS – ATX, DDR5, AMD AM5, PCIe 5.0, Wi-Fi 6E + Bluetooth 5.2, 2.5G LAN, Ryzen 7000/8000/9000
0 DA
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7600+ (OC) - 1 PCIe 5.0 x16,
2 PCIe 4.0 x1,
1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
3 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen3x2 & SATA3),
6 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front),
1 USB 3.2 Gen2 Type-C (Rear),
1 USB 3.2 Gen2 Type-A (Rear),
8 USB 3.2 Gen1 (4 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth 5.2
Description
| Category | Specifications |
|---|---|
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 Rock-Solid Durability – Server-Grade Low-Loss PCB – 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| CPU | – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Chipset | – AMD X670 |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)* – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information. |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless LAN | – 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO *The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. No driver for Windows® 10. Availability depends on country regulation. Requires 6GHz compatible router. |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E) for type 2230 WiFi/BT module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), PCIe Gen5x4 – 1 x Hyper M.2 Socket (M2_2, Key M), PCIe Gen4x4 Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), PCIe Gen4x4 – 1 x M.2 Socket (M2_4, Key M), SATA3 & PCIe Gen3x2 – 1 x Hyper M.2 Socket (M2_5, Key M), PCIe Gen4x4 – 6 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| RAID | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Connector | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)<br>- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)<br>- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (4 ports) – 2 x USB 3.2 Gen1 Headers (4 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) *Supports up to 12V/3A, 36W LED Strip **Supports up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports up to 1A (12W) ****CPU_FAN2/WP supports up to 2A (24W) *****CHA_FAN1~4/WP supports up to 2A (24W) |

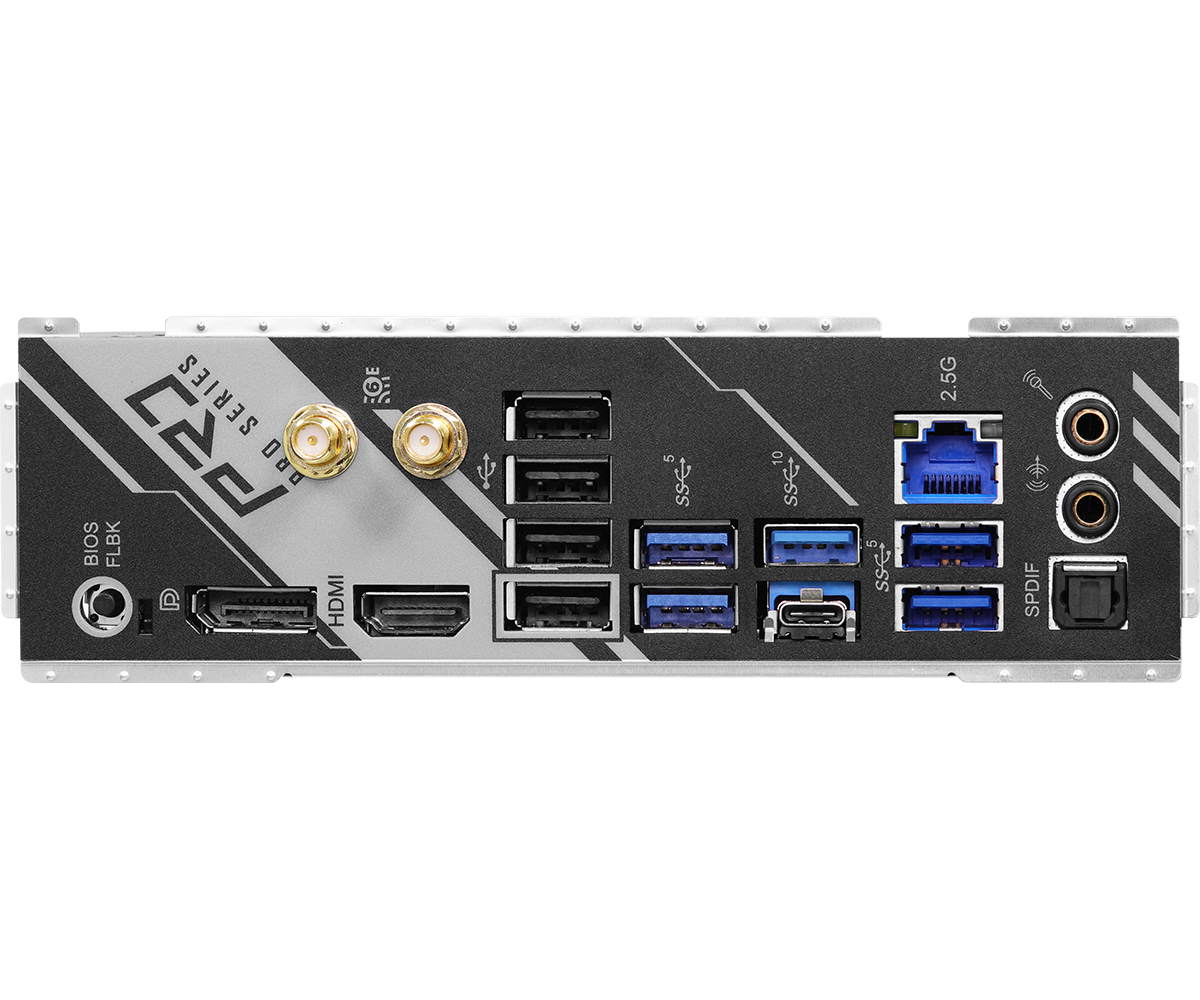

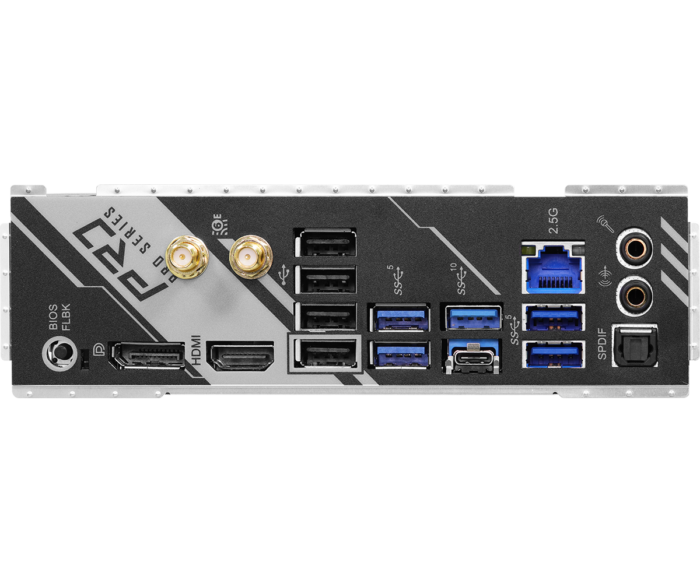

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) – 4 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software: – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI: – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *Utilities downloadable from ASRock Live Update & APP Shop |
| Accessories | – 1 x User Manual – 2 x SATA Data Cables – 1 x AS |
