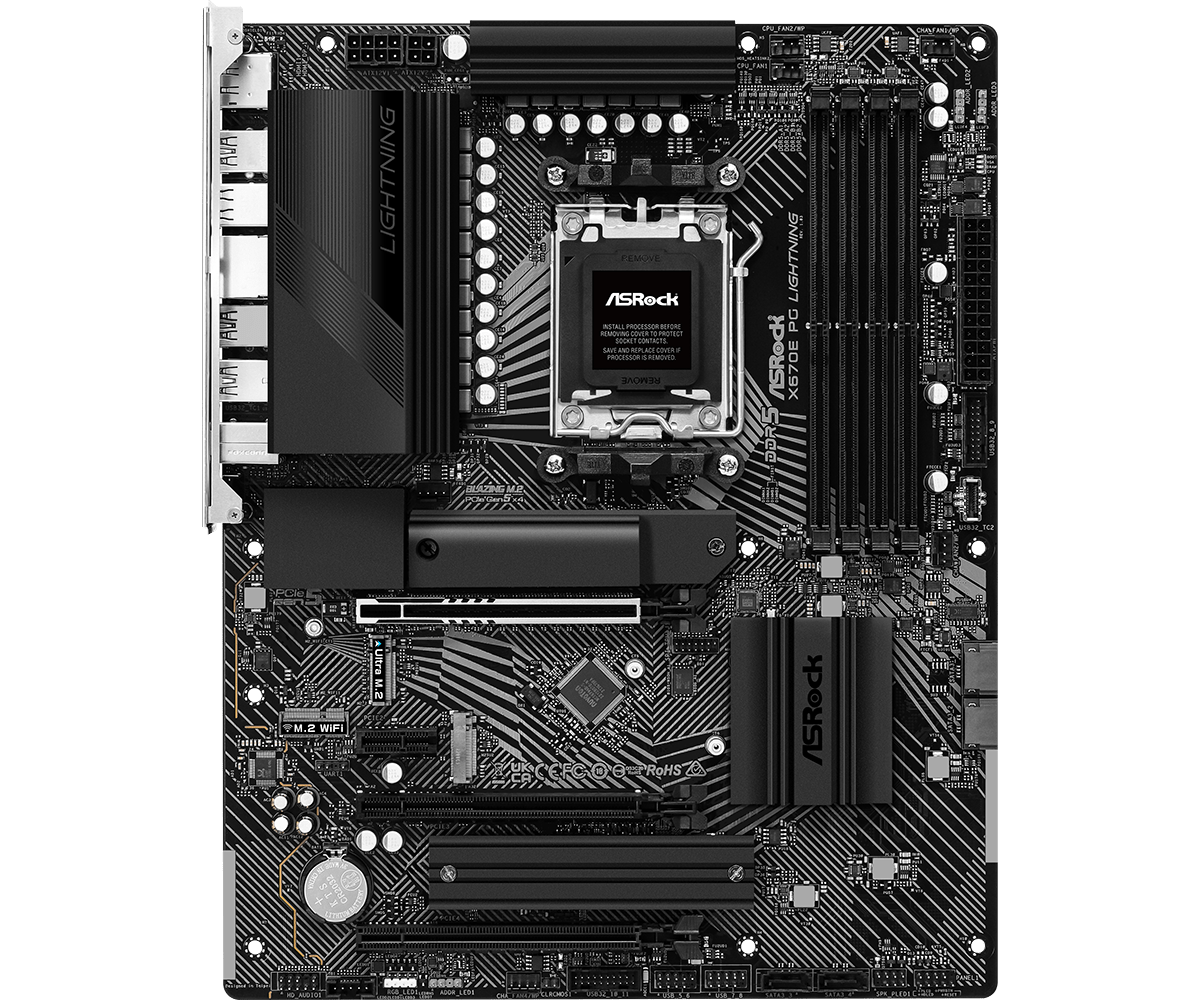

Asrock X670E PG LIGHTNING – EATX, DDR5, AMD AM5, PCIe 5.0, WiFi 6E, 12th/13th Gen AMD Ryzen Support

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 5.0 x16,
2 PCIe 4.0 x16,
1 PCIe 4.0 x1,
1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 Ultra M.2 (PCIe Gen3x4 & SATA3),
1 M.2 (PCIe Gen4x2),
4 SATA3
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
10 USB 3.2 Gen1 (6 Rear, 4 Front)
Realtek 2.5G LAN

Component	Details
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)
Chipset	AMD X670
Memory	4× DDR5 DIMMs, Dual-Channel, up to 256GB, 7200+ MHz (OC)
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 4.0 x16, 1× PCIe 4.0 x1, 1× PCIe 4.0 x16 (x1 mode)
Graphics Output	HDMI 2.1 (4K@120Hz), DisplayPort 1.4 (4K@120Hz)*
Storage	4× M.2 (1× PCIe Gen5x4, 1× PCIe Gen4x4, 1× Gen4x2, 1× Gen3x4/SATA), 4× SATA3
RAID Support	RAID 0, 1, 10 (M.2 NVMe and SATA)
LAN	2.5G Dragon RTL8125BG with bandwidth optimization tools
Audio	Realtek ALC897 7.1 CH HD Audio, Nahimic support

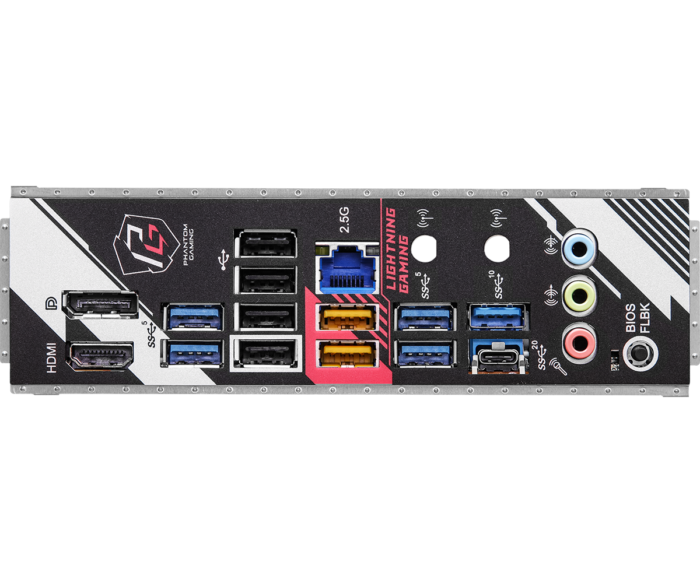

USB Rear I/O	1× USB 3.2 Gen2x2 Type-C, 1× Gen2 Type-A, 6× Gen1, 4× USB 2.0
Internal USB	Front panel USB-C Gen2x2 (20Gbps), USB 3.2 Gen1 headers, USB 2.0 headers
Fan Headers	6× 4-pin (CPU, Water Pump, Chassis) with smart speed detection
Lighting Support	1× RGB LED, 3× Addressable RGB headers
Form Factor	ATX – 30.5 cm x 24.4 cm (8-layer PCB)
OS Compatibility	Windows 10 / 11 64-bit
